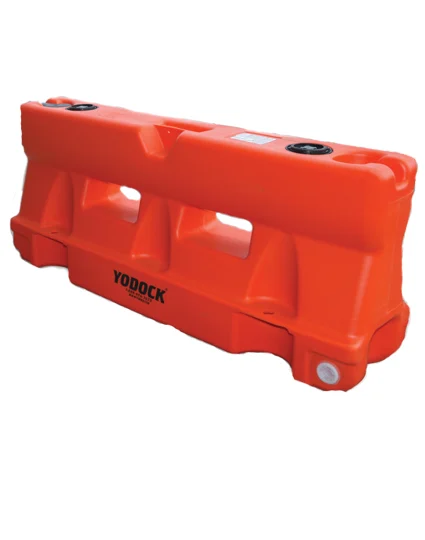

Yodock 2001MB Water-Filled Construction Barrier
Orange, MASH & NCHRP 350, For Work-Zones and Vertical Construction
Item #:2001MBORG
MPN #:148002B
-
On Sale
You save 24% regardless of quantity
In Stock - Ships Tomorrow -
$389.00
$509.30
$389.00
$470.55
$389.00
$436.10
Quantity
1-25Quantity
26-74Quantity
75+ -
Quick Facts:
- The Yodock 2001MB is 6' long, 18" wide, and 32" high
- Approximately 85 lbs. each (empty weight)
- Water Filled Barriers Weigh approx. 900 lbs filled with water
- Optional Custom Fence Panel Topper
- Two Colors to choose from - Hi-Viz Safety Orange or White
-
In Stock - Ships Tomorrow
-
Volume Pricing:
Quantity
1-25Quantity
26-74Quantity
75+![regular price]()
$509.30
$389.00
![regular price]()
$470.55
$389.00
![regular price]()
$436.10
$389.00
ShareThe Yodock® 2001MB is the premier water-filled barrier for Vertical Construction and Job Site Perimeters. Unlike standard road barriers, the 2001MB is specifically engineered to secure construction zones, separate pedestrians from work areas, and control site access.
Why Contractors Choose the 2001MB:
- Vertical Construction Ready: The ideal base for perimeter fencing to protect the public from debris and restrict unauthorized access.
- Job Site Security: Create a continuous, interlocking wall that creates a clear boundary between the public and your active work zone.
- Heavy-Duty Stability: Deploys light (85 lbs) for easy hand-setup by your crew, but weighs 900 lbs when filled for immovable security.
- Certified Safety: While primarily used for site perimeters, this unit is also rated as a Longitudinal Channelizing Device (LCD) for reliable performance.
Dimensions: 6' Length x 18" Width x 32" Height.
Stock Status: Traffic Safety Store stocks large quantities for immediate delivery to your job site.
Technical Specifications
| Length | 6' (72") |
| Height | 32" (extends to 66" w/ fence) |
| Width at Base | 18" |
| Empty Weight | 85 lbs (Hand Deployable) |
| Filled Weight | ~900 lbs (Water Ballast) |
| Material | High-Density Polyethylene (HDPE) |
| Compliance | NCHRP Report 350, MUTCD, FHWA Accepted |
Construction & Site Security Features
The Yodock 2001MB is engineered to bridge the gap between lightweight portability and heavy-duty security. It is the preferred solution for vertical construction and urban job sites where concrete barriers are impractical.
- Crew-Friendly Installation: At only 85 lbs empty, these units can be offloaded and positioned by a two-person crew without requiring cranes or heavy forklifts.
- Perimeter Fencing Ready: Pre-molded openings allow for the immediate installation of fencing panels, creating a 66" high visual and physical barrier against theft and liability.
- Immovable Stability: Once positioned and filled with water or sand, the interlocking system creates a continuous wall with the weight and stability required for secure work zones.
Federal Compliance & Traffic Use (LCD)
While optimized for construction perimeters, the Yodock 2001MB is a fully certified Longitudinal Channelizing Device (LCD). It meets the rigorous standards of NCHRP Report 350 for traffic safety.
- Continuous Delineation: Unlike cones or drums, the Yodock system creates a solid line that clearly separates motorists and pedestrians from work areas.
- Type III Barricade Alternative: Can be deployed as a Type III barricade for road closures, eliminating the need for sandbags and flimsy hardware.
- ADA Compliant: Meets MUTCD guidelines for pedestrian access, providing a safe, detectable continuous path for pedestrians.
Why Buy From Traffic Safety Store?
Traffic Safety Store is the leading supplier of Yodock systems for a reason: Inventory and Speed. We stock these units in massive quantities to ensure we can meet the strict timelines of commercial construction projects.
Need a quote for a large perimeter? Contact our support team today for volume pricing and shipping estimates.
-
![]()
