Power Post Uprights with Square Steel Feet Type 3 Barricade with 8' Plastic Rails

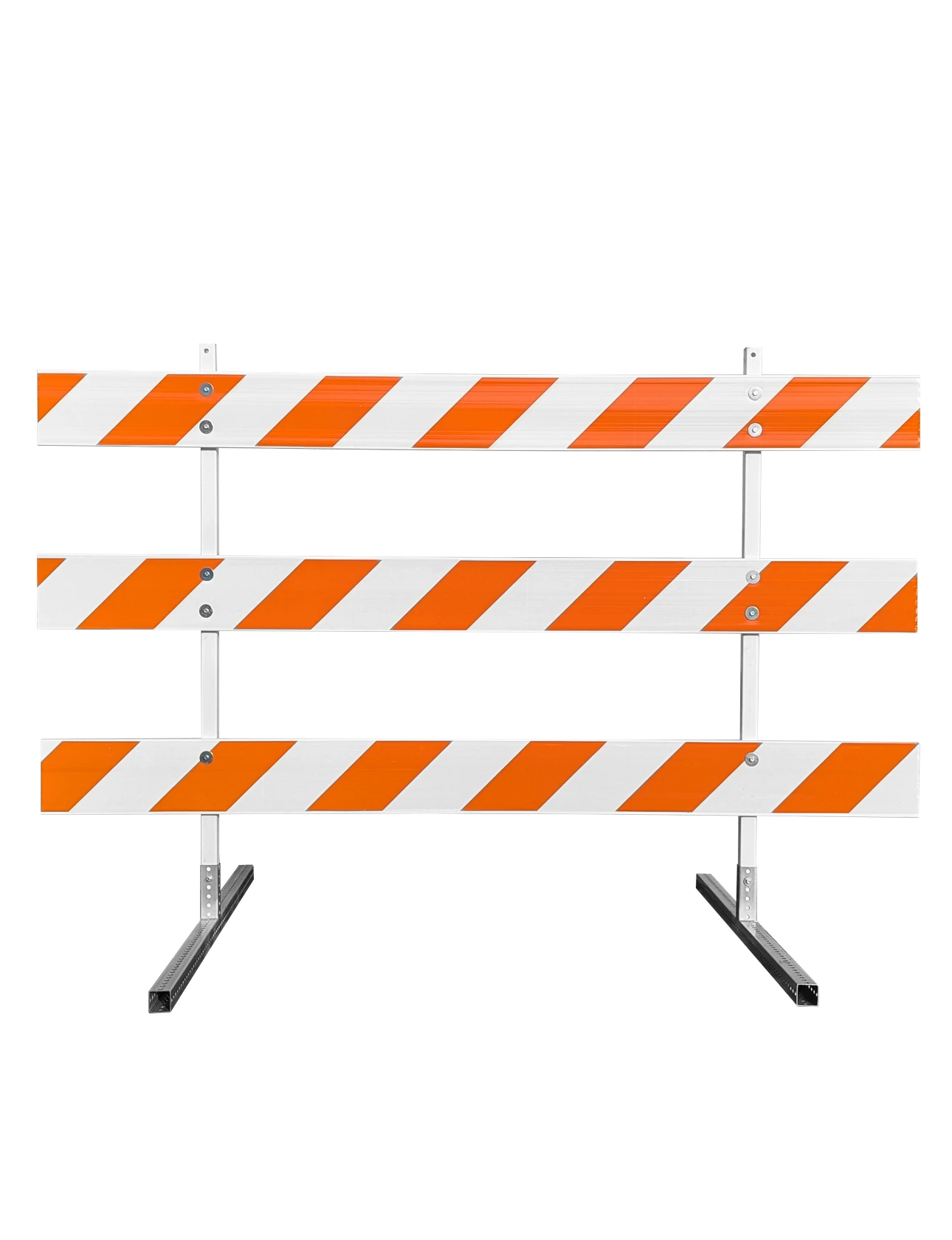

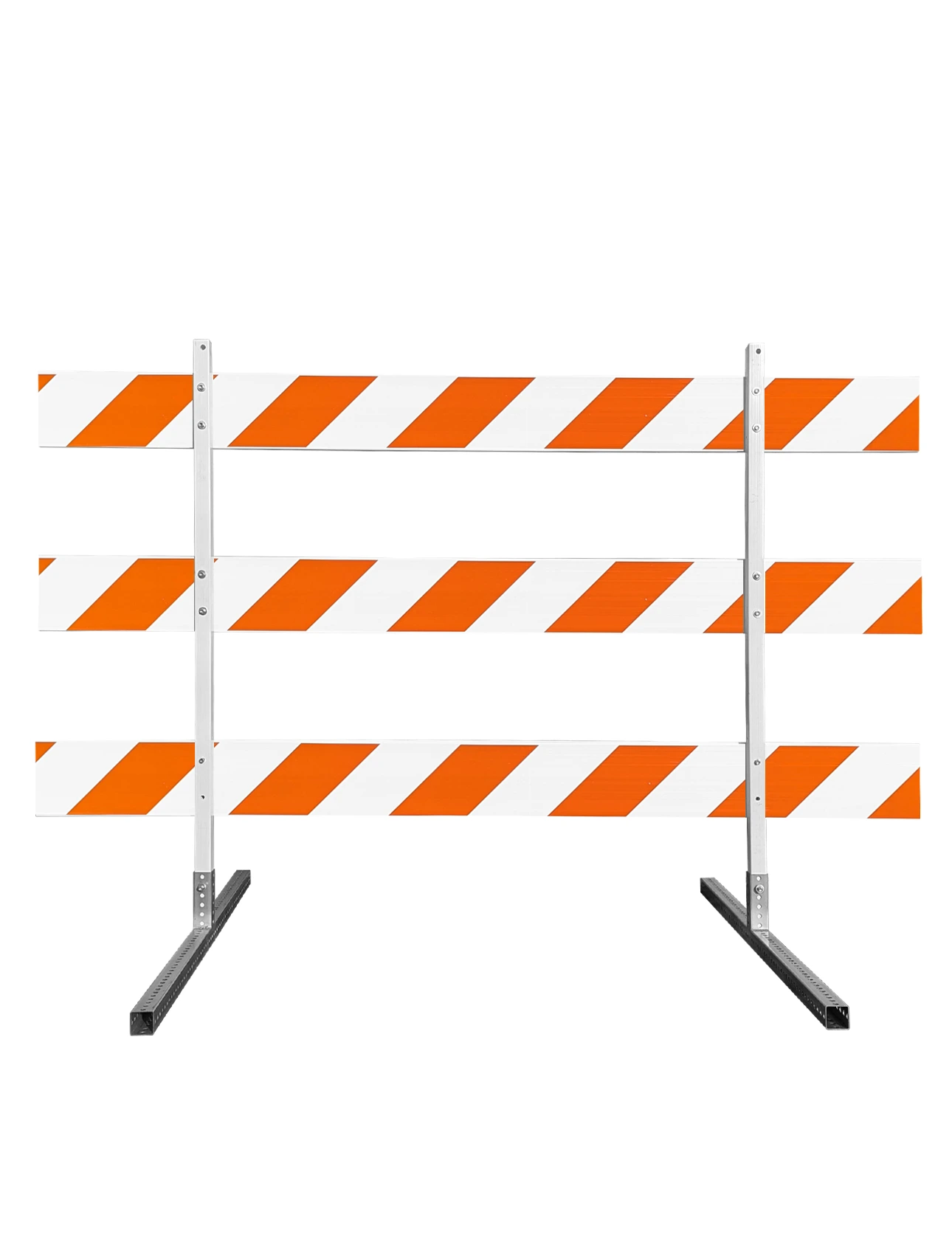

63" Tall MUTCD Type III Barricade -Plastic Power Post Uprights, Square Steel Sign Post Feet & Three 8' Plastic Boards w/HI Sheeting On Both Sides Of Rails

63\" Tall MUTCD Type III Barricade -Plastic Power Post Uprights, Square Steel Sign Post Feet \u0026 Three 8\u0027 Plastic Boards w/HI Sheeting On Both Sides Of Rails

Item #:T3-PPSF-HI2-8

Choose Sheeting:

Engineer Grade (EG) High Intensity (HI)

  • Available Sheeting:

    • Engineer Grade (EG)
    • High Intensity (HI)

    • Choose Sides Sheeted:

    Single (1) Both

  • Available Sides Sheeted:

    • Single (1)
    • Both

    • Choose Custom Lettering or Logo (Optional):

    No Customization + Add Lettering (Single Side)

  • Available Custom Lettering or Logo (Optional):

    • No Customization
    • Add Lettering (Single Side)
    • In Stock - Ships Today
      Alternate TextShare
    • $309.95
      Save
      8%       $285.95
      Save
      14%       $265.95
      Quantity
      1-9
      Quantity
      10-19
      Quantity
      20+

    • Quick Facts:

      • Highly durable, lightweight (3.25 lbs), 1.75" x 1.75" extruded plastic uprights
      • Galvanized steel square sign post feet
      • Accepts two (2) flashing lights
      • Quick removal of uprights from feet (short term or permanent placement)
      • NCHRP-350 Accepted (meets MUTCD standards)
      • Uprights contain holes for boards 11/32” and holes for lights 9/16”
      • Easy to assemble and replace parts if needed



      Each Kit Contains:

      - Two (2) 2" x 2" Square Steel Sign Post Feet with 6" Riser to accept uprights

      - Two (2) 1.75" x 1.75" x 63" Tall Extruded Plastic Uprights

      - Three (3) 8' x 8" x 1" Plastic Rails with Orange & White Reflective Sheeting (Choose Engineer Grade (EG) or High Intensity (HI) sheeting)

      - All mounting hardware included

    • Volume Pricing:

      Quantity
      1-9
      Save
      8%       Quantity
      10-19
      Save
      17%       Quantity
      20+
      $309.95
      $285.95
      $265.95

    Power Post™ Type III Barricade with Square Steel Feet & 8' Rails

    For projects that require maximum visual presence and dependable stability, the 8′ Power Post™ Type III Barricade with Square Steel Feet is built to perform. This full-length configuration combines impact-resistant Power Post™ uprights with rugged square steel tube feet, delivering a professional traffic control solution for wide lane closures, roadway construction, and long-term work zones.

    Balanced Design: Lightweight Uprights, Heavy-Duty Base

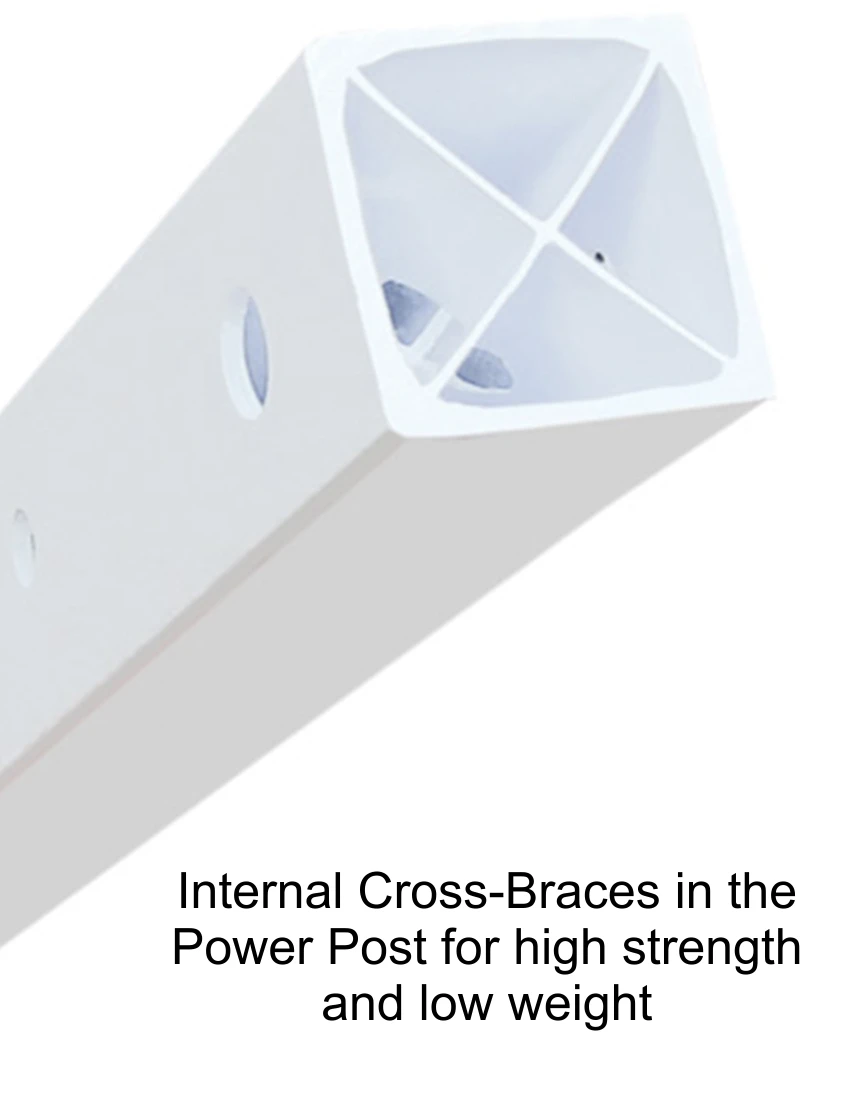

    Power Post™ uprights are constructed from durable square plastic tubing that is lightweight enough for easy handling yet tough enough for repeated jobsite use. The square steel tube feet provide a solid, low-profile foundation that helps keep the barricade stable in wind, traffic turbulence, and exposed roadway conditions. Uprights remove easily from the feet for efficient transport and storage.

    Maximum 8′ Rail Coverage

    This version features 1″ × 8″ plastic rails spanning a full 8 feet, creating a broad, continuous visual barrier that clearly defines work zones and detours. The extended rail length improves driver recognition from greater distances, making it ideal for highways, multi-lane roads, and large construction areas.

    Configured for High Visibility

    Pre-drilled uprights allow for the installation of up to two barricade warning lights (sold separately), helping increase awareness during nighttime and low-light operations. The rails are designed to accept reflective sheeting, enhancing visibility and supporting compliance with work zone safety standards.

    Built for Compliance & Demanding Use

    • MUTCD compliant Type III traffic barricade
    • Square steel tube feet provide excellent stability and corrosion resistance
    • Impact-resistant Power Post™ uprights for long-term durability
    • Pre-drilled components simplify assembly and accessory mounting

    Ideal Applications

    • Highway and multi-lane road closures
    • Large construction and infrastructure projects
    • Municipal and DOT traffic control
    • Utility work requiring extended coverage
    • Event routing and large-area crowd management

    With its full-width rails and stable steel base, the 8′ Power Post™ Type III Barricade with Square Steel Feet delivers the visibility, strength, and flexibility needed for demanding traffic control environments.

    Note: Reflective sheeting options and barricade warning lights are available separately.

    Some assembly required.
