FallTech Confined Space Davit System

FallTech 6050428WR 5-Piece Confined Space Davit System with Winch & SRL-R

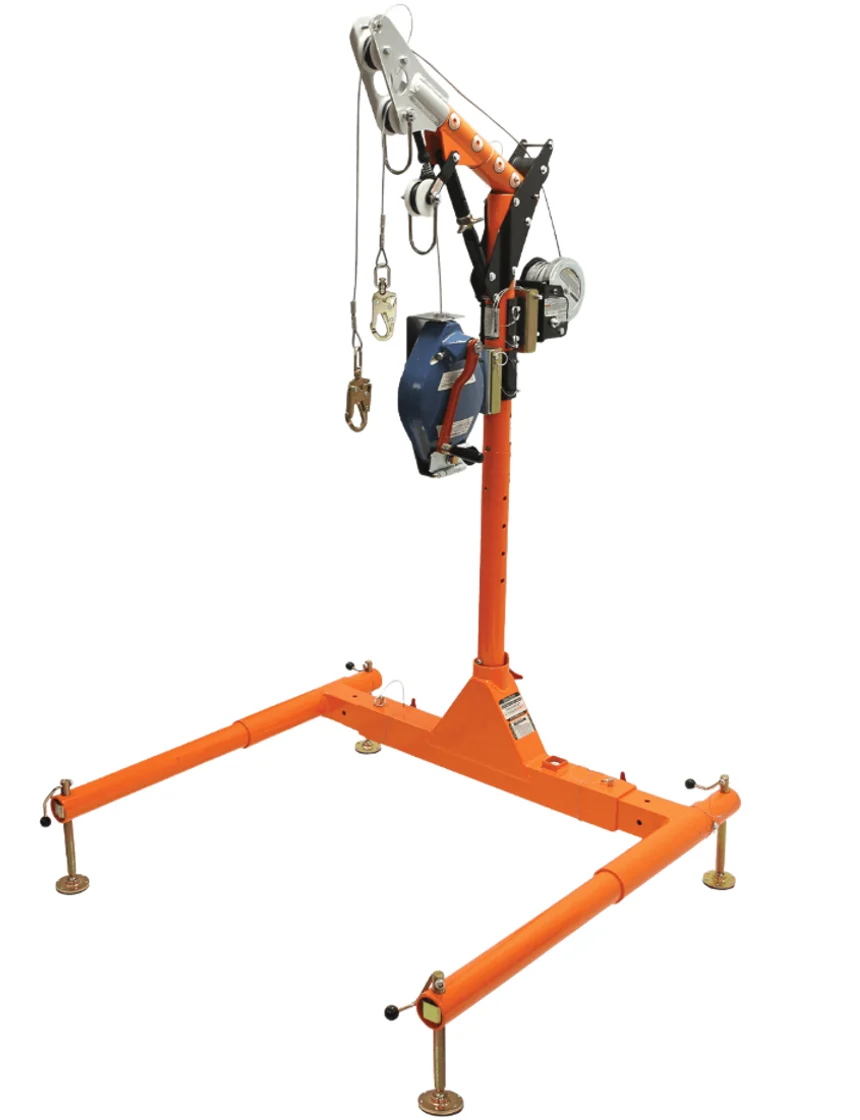

The FallTech 6050428WR 5-Piece Confined Space Davit System is a complete, portable confined space entry, rescue, and retrieval solution designed for demanding vertical access applications. Built for crews working around tanks, vaults, manholes, utility access points, and other restricted-entry environments, this system combines an adjustable davit arm, 3-piece base, mast, 60' galvanized cable SRL-R, and personnel winch into one versatile jobsite-ready package.

Designed for precise positioning over access openings, the offset davit arm adjusts from 12" to 29", helping keep lifelines centered over the entry point. The adjustable base width expands from 38" to 65", allowing the system to fit a wide range of confined space openings while helping crews establish a stable working setup.

The FallTech 6050428WR includes both a 60' galvanized cable SRL-R and a personnel winch, making it the most complete configuration in this davit system family. The SRL-R provides fall arrest and rapid retrieval capability, while the personnel winch supports controlled raising and lowering during confined space entry, egress, and rescue operations.

For added versatility, the 5-piece system features a 33" lower mast extension, two device receiver brackets, and an offset davit arm with two pulleys plus a secondary 5,000 lb. anchor point. The 3-piece base also includes an integral bullseye level and tool-free height adjustment, helping simplify setup and alignment in the field.

Constructed from powder-coated 6061 aluminum and plated steel, the FallTech 6050428WR delivers a strong, durable design while remaining practical for transport and repeated jobsite use. This complete davit system is ideal for contractors, municipalities, utilities, industrial maintenance teams, and rescue crews that need a dependable confined space fall protection system with both SRL-R and winch capability.

The FallTech 6050428WR meets OSHA 1926.502 and 1910.66 regulations. The SRL-R complies with ANSI Z359.14-2014, and the winch complies with ANSI Z359.4-2013.

Key Features

• Complete 5-piece confined space davit system for entry, egress, rescue, and retrieval applications
• Includes adjustable davit arm, 3-piece base, mast, 60' galvanized cable SRL-R, and personnel winch
• Davit arm adjusts from 12" to 29" offset reach to help keep lifelines centered over access openings
• Base width adjusts from 38" to 65" to fit a wide range of confined space openings
• Includes both SRL-R and personnel winch for fall arrest, retrieval, and controlled raising/lowering capability
• 5-piece system features 33" lower mast extension and two device receiver brackets
• Offset davit arm features two pulleys and a secondary 5,000 lb. anchor point
• 3-piece base includes integral bullseye level and tool-free height adjustment
• Powder-coated 6061 aluminum and plated steel construction for strength and durability
• Rescue static strength: 5,000 lb. minimum
• Entry/egress static strength: 1,800 lb. minimum
• Rescue user capacity: two users, 310 lb. maximum per person
• Entry/egress capacity: one user, 310 lb. maximum
• Meets OSHA 1926.502 and 1910.66 regulations
• SRL-R complies with ANSI Z359.14-2014; winch complies with ANSI Z359.4-2013
