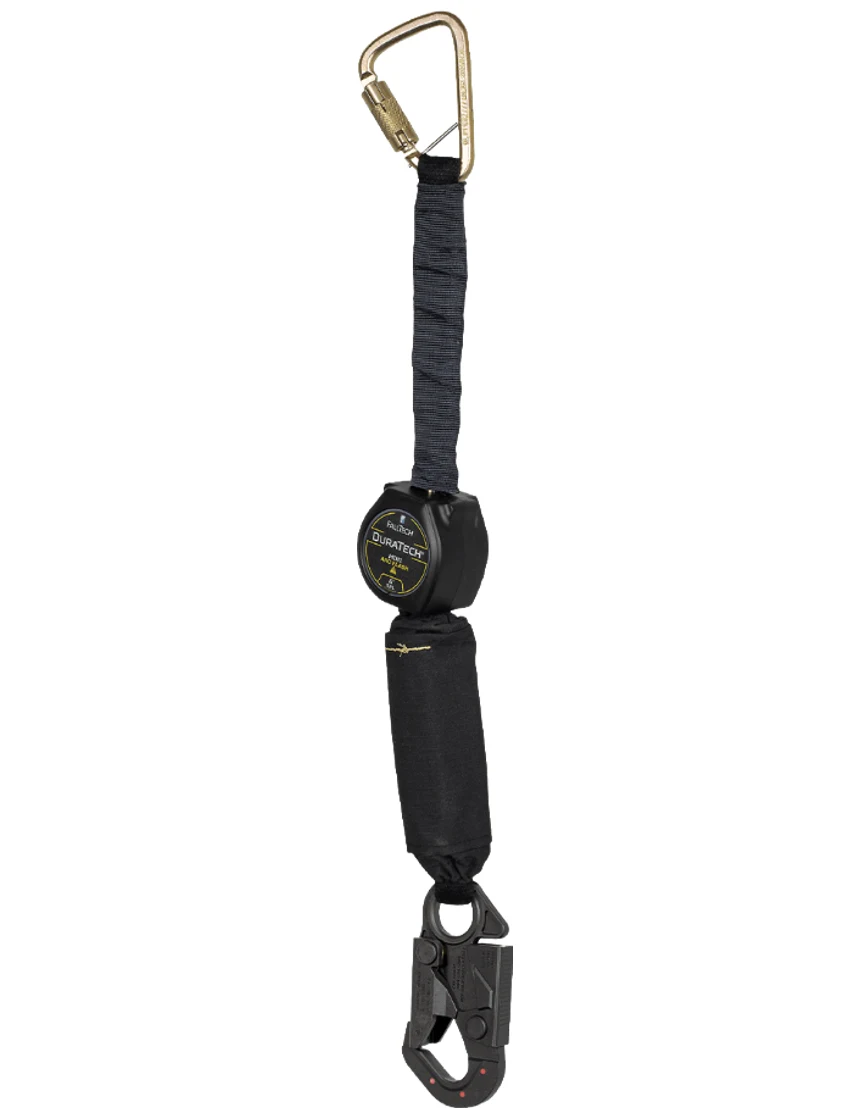

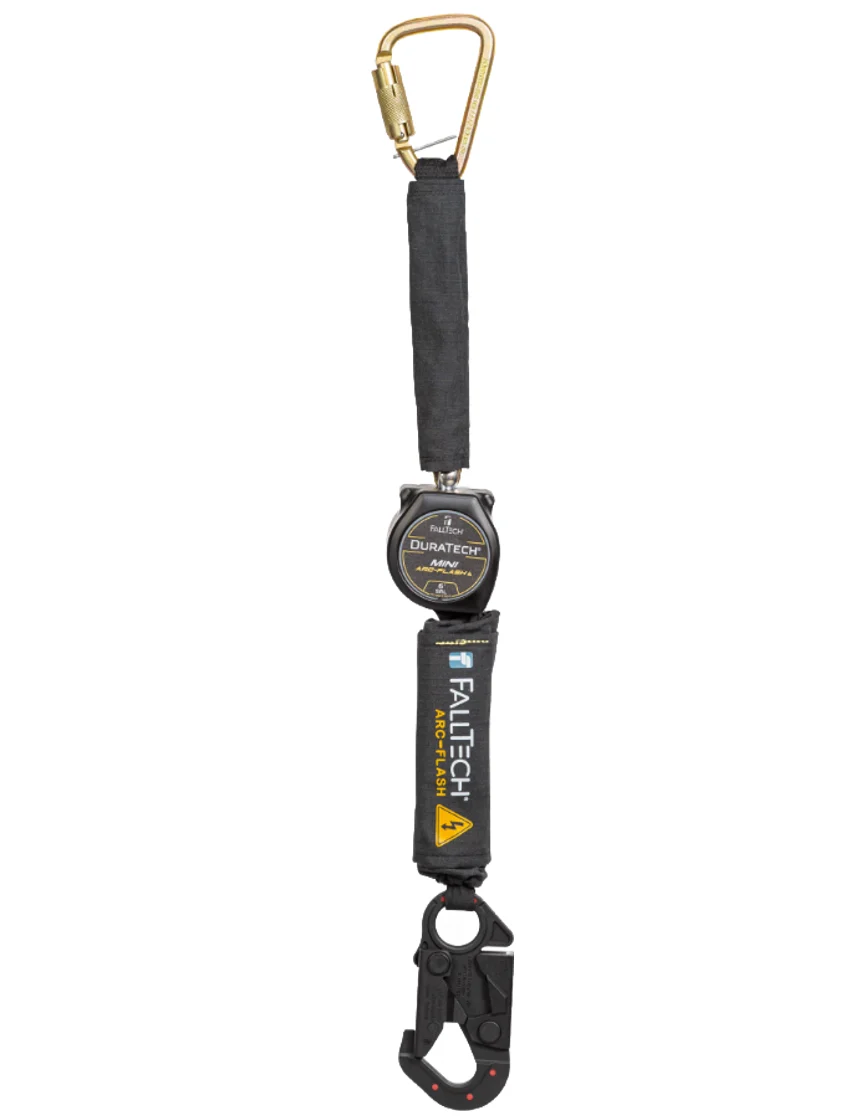

FallTech 6' Arc Flash DuraTech® Mini Class 1 Personal SRL-P with Dielectric Dorsal Connecting Snap Hook and Steel Anchorage Carabiner

FallTech 6' Arc Flash DuraTech® Mini Class 1 Personal SRL-P (Model

72906SCD1L)

The FallTech 72906SCD1L 6' Arc Flash DuraTech® Mini Class 1 Personal SRL-P is designed for electrical, utility, and lift work where workers need compact fall protection with arc flash resistance. Built with a Kevlar® web lifeline, this personal self-retracting lifeline helps protect against arc flash hazards while delivering the lightweight, durable performance that makes the DuraTech® Mini a popular choice on demanding jobsites.

This Class 1 SRL-P features a dielectric dorsal connecting snap hook for attachment to the worker’s harness and a plated alloy steel anchorage carabiner with Kevlar® extension for lift connections. Its nylon housing provides impact resistance in typical worksite conditions, while internal locking pawls and an external energy absorber help provide controlled deceleration in the event of a fall.

The energy absorber includes a Nomex® ViewPack® cover with an inspection window and WrapPack label protection, making inspections easier while helping protect critical product information in harsh environments. Compact, dependable, and built for arc flash applications, the 72906SCD1L is a strong choice for workers who need personal fall arrest protection in bucket trucks, aerial lifts, utilities, electrical work, and industrial maintenance.

Key Features

• 6' Arc Flash DuraTech® Mini Class 1 Personal SRL-P
• Kevlar® web lifeline helps protect against arc flash hazards
• Single-leg personal SRL design for compact fall arrest protection
• Includes dielectric dorsal connecting snap hook for harness connection
• Alloy steel carabiner anchorage connector with Kevlar® extension for lift connections
• External energy absorber with Nomex® ViewPack® cover, inspection window, and WrapPack label protection
• Internal locking pawls and external energy absorber help provide even deceleration
• Nylon housing provides impact resistance in most worksite conditions
• Plated steel swivel-eye helps prevent lifeline twisting and supports smooth operation
• May be anchored up to 3' below the dorsal D-ring for users weighing up to 310 lb max.
• Complies with ANSI Z359.14-2021 Class 1 SRL-P and ASTM F887-20
• OSHA compliant for 1926.502 and 1910.66 applications

Common Applications

• Electrical work
• Utility crews
• Aerial lifts and bucket trucks
• Arc flash hazard environments
• Industrial maintenance
• MEP work
• General fall arrest applications requiring compact personal SRLs

Specifications

• Part Number: 72906SCD1L
• Product Type: Class 1 Arc Flash SRL-P
• Length: 6'
• Configuration: Single-leg
• Lifeline Material: Kevlar® web
• Dorsal Connector: Dielectric snap hook
• Anchorage Connector: Plated alloy steel carabiner with Kevlar® extension
• Housing: Nylon
• Energy Absorber: Polyester tear-away with Nomex® ViewPack® cover
• Static Strength: 3,600 lb minimum
• ANSI SRL Class/Type: Class 1 SRL-P
• Average Arrest Force: 900 lb
• Maximum Arrest Force: 1,800 lb
• Maximum Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.
• Relevant Standards: ANSI Z359.14-2021, OSHA 1926.502 and 1910.66, ASTM F887-20

For workers exposed to arc flash hazards who need compact, personal fall arrest protection, the FallTech 72906SCD1L offers the right combination of Kevlar® webbing, dielectric harness connection, lift-ready anchorage hardware, and Class 1 SRL-P compliance. It is built for crews who need dependable protection without adding unnecessary bulk to their fall protection setup.
